Specifications

Specifications
Print speed black:
Normal: Up to 28 ppm 12
Print speed color:
Normal:Up to 28 ppm 12
First page out (ready)
Black: As fast as 9.5 sec
Color: As fast as 11.1 sec 8
Print quality black (best):
  • 600 x 600 dpi, Up to 38, 400 x 600 enhanced dpi
Print quality color (best):
  • 600 x 600 dpi, Up to 38, 400 x 600 enhanced dpi
Print Resolution Technologies:
HP ImageREt 3600, PANTONE® calibrated
Duty cycle (monthly, A4)
Up to 50,000 pages 9
(Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.)
Recommended monthly page volume
750 to 4000 10
Print technology:
  • Laser
Processor speed:
1200 MHz
Print languages:
HP PCL 6, HP PCL 5c, HP postscript level 3 emulation, PDF, URF, Native Office, PWG Raster
Display:
  • 2.7-in intuitive color touchscreen
Replacement cartridges
AMS: For distribution and use in North America and Latin America only: HP 414A Black Original LaserJet Toner Cartridge (~2,400 pages) W2020A
HP 414A Cyan Original LaserJet Toner Cartridge (~2,100 pages) W2021A
HP 414A Yellow Original LaserJet Toner Cartridge (~2,100 pages) W2022A
HP 414A Magenta Original LaserJet Toner Cartridge (~2,100 pages) W2023A
HP 414x Black Original LaserJet Toner Cartridge (~7,500 pages) W2020x
HP 414x Cyan Original LaserJet Toner Cartridge (~6,000 pages) W2021x
HP 414x Yellow Original LaserJet Toner Cartridge (~6,000 pages) W2022x
HP 414x Magenta Original LaserJet Toner Cartridge (~6,000 pages) W2023x
EMEA: For distribution and use in Europe, Middle East, Russia, CIS, and Africa only: HP 415A Black Original LaserJet Toner Cartridge (~2,400 pages) W2030A
HP 415A Cyan Original LaserJet Toner Cartridge (~2,100 pages) W2031A
HP 415A Yellow Original LaserJet Toner Cartridge (~2,100 pages) W2032A
HP 415A Magenta Original LaserJet Toner Cartridge (~2,100 pages) W2033A
HP 415x Black Original LaserJet Toner Cartridge (~7,500 pages) W2030x
HP 415x Cyan Original LaserJet Toner Cartridge (~6,000 pages) W2031x
HP 415x Yellow Original LaserJet Toner Cartridge (~6,000 pages) W2032x
HP 415x Magenta Original LaserJet Toner Cartridge (~6,000 pages) W2033x
APJ: For distribution and use in Asia Pacific only: HP 416A Black Original LaserJet Toner Cartridge (~2,400 pages) W2040A
HP 416A Cyan Original LaserJet Toner Cartridge (~2,100 pages) W2041A
HP 416A Yellow Original LaserJet Toner Cartridge (~2,100 pages) W2042A
HP 416A Magenta Original LaserJet Toner Cartridge (~2,100 pages) W2043A
HP 416x Black Original LaserJet Toner Cartridge (~7,500 pages) W2040x
HP 416x Cyan Original LaserJet Toner Cartridge (~6,000 pages) W2041x
HP 416x Yellow Original LaserJet Toner Cartridge (~6,000 pages) W2042x
HP 416x Magenta Original LaserJet Toner Cartridge (~6,000 pages) W2043x 4
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
http://www.hp.com/go/learnaboutsupplies

Connectivity

Connectivity
Mobile printing capability
Apple AirPrint™
Google Cloud Print™
HP ePrint
HP Smart App and other mobile Apps
Mopria™ Certified
ROAM capable for easy printing
Wi-Fi® Direct printing 6
Wireless capability:
  • Yes, built-in dual-band Wi-Fi
  • Authentication via WEP, WPA/WPA2, WPA Enterprise
  • Encryption via AES or TKIP
  • WPS
  • Wi-Fi Direct
  • Bluetooth Low-Energy
Connectivity, standard:
  • 1 Hi-Speed USB 2.0 port
  • 1 host USB at rear side
  • built-in Gigabit Ethernet 10/100/1000 Base-TX network port
  • 1 Wireless 802.11b/g/n/2.4/5 Ghz Wi-Fi radio
Minimum system requirements
  • 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com

  • 2 GB available hard drive space, Internet connection or USB port, OS hardware requirements see apple.com
Compatible operating systems
Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd
Memory specifications Memory specifications
Memory:
512 MB NAND Flash, 512 MB DRAM
Maximum memory
512 MB NAND Flash, 512 MB DRAM

Paper handling

Paper handling
Paper handling input, standard:
  • 50-sheet multipurpose tray
  • 250-sheet input tray
Paper handling input, optional
Optional 550-sheet tray
Paper handling output, standard:
  • 150-sheet output bin
Output capacity:
Up to 150 sheets
Duplex printing:
Automatic (default)
Media sizes supported:
Tray 1, Tray 2: Letter, legal, executive, Oficio (8.5 x 13 in), 4 x 6 in, 5 x 8 in, envelopes (No 10, Monarch); Optional Tray 3: Letter, legal, executive, Oficio (8.5 x 13 in), 4 x 6 in, 5 x 8 in; Automatic duplexer: Letter, legal, executive, Oficio (8.5 x 13 in)
Media sizes, custom:
Tray 1: 3 x 5 to 8.5 x 14 in; Tray 2, optional Tray 3: 3.94 x 5.83 to 8.5 x 14 in
Media types:
Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, labels, envelopes
Media weight, supported:
Tray 1: 16 to 47 lb bond (up to 52 lb with HP Color laser glossy photo papers); Tray 2: 16 to 43 lb bond (up to 47 lb with postcards, up to 52 lb with HP Color laser glossy photo papers); optional Tray 3: 16 to 43 lb bond (up to 47 lb with postcards, up to 40 lb with HP Color laser glossy photo papers); Automatic duplexer: 16 to 43 lb

Power and operating requirements

Power and operating requirements
Power:
110-volt input voltage: 110 to 127 VAC (+/- 10%), 60 Hz (+/- 3 Hz); 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50/60Hz (+/- 3 Hz) (Not dual voltage, power supply varies by part number with # Option code identifier)
Power consumption
550 watts (active printing), 17 watts (ready), 0.9 watts (sleep), 0.9 watts (HP auto-off/auto-on), 0.07 watts (auto-off/manual-on), 0.07 watts (off) 2
Energy efficiency:
  • ENERGY STAR® qualified
  • EPEAT® Silver
  • CECP
Blue Angel compliant:
  • Yes, Blue Angel DE-UZ 205—only ensured when using Original HP supplies
Operating temperature range:
10 to 32.5°C
Recommended operating humidity range:
30 to 70% RH (non-condensing)
Acoustic power emissions (ready)
3.4B(A) 14
Acoustic pressure emissions bystander (active, printing)
48 dB(A) 14

Dimensions and weight

Dimensions and weight
Minimum dimensions (W x D x H)
16.2 x 18.5 x 11.6 in
Maximum dimensions (W x D x H)
16.2 x 25.6 x 13.4 in
Weight
41.7 lb
Package dimensions (W x D x H):
497 x 379 x 583 mm
Package weight:
22.1 kg

What's included

What's included
What's in the box

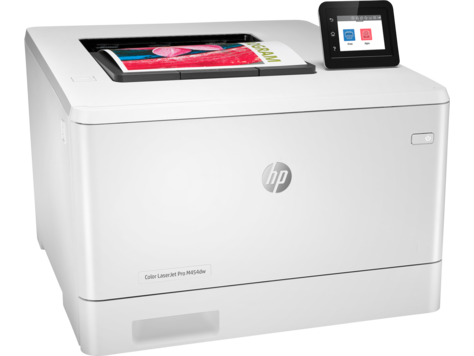

HP Color LaserJet Pro M454dw
4 preinstalled Introductory HP LaserJet Toner cartridges (Black, Cyan, Magenta, Yellow: ~1200 pages)
In-box documentation (Getting Started Guide, Install Poster), regulatory flyer, warranty card (China, Mexico)
Internet connection is required to set up the printer. HP printer software is available at http://www.hp.com/support
Power cord
USB cable. 1
Cable included:
Yes, 1 USB cable
Warranty:
One-year Bench/Depot Repair warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4E; wty ID A033)
1  In box cartridges yield ~1,200 color composite (C/Y/M) and ~1,200 black pages based on ISO/IEC 19798 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see: http://www.hp.com/go/learnaboutsupplies. Pages may vary based on customer printing conditions.
2  Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typicallty based on measurement of 115V device.
3  BA TEC is equal to Best TEC. Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V device.
4  Toner cartridges designed for distribution and use within a designated region only; will not work outside of designated region.
5  Declared yield value in accordance with ISO/IEC 19798. Actual yields vary considerably based on images printed and other factors. For more information, visit http://www.hp.com/go/learnaboutsupplies
6  Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections) or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area. For more information visit hp.com/go/mobileprinting. To enable HP Roam, some devices may require firmware to be upgraded and an optional accessory to add Bluetooth® Low Energy (BLE) beaconing capabilities. Subscription may be required. For more information, visit hp.com/go/roam
7  Measured using ISO 24734 Feature Test, A5 Landscape Feed. Speed may vary based on content, PC, media orientation, and media type.
8  Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
9  Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
10  HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period
11  HP SureSupply alerts you when your print cartridge is running low and helps you purchase online or locally through HP or a participating retailer. For more information, visit http://www.hp.com/go/SureSupply; only available with Original HP supplies; Internet access required.
12  Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
13  EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
14  Acoustic values are subject to change. For current information see http://www.hp.com/support. Configuration tested: base model, simplex printing, A4 paper at an average of 27 ppm.
